Project 2: Ladybug Sun Analysis

Facades of buildings often contribute positive or negative effects on the structures interior. In this exploration a parametric facade is being looked at to see how the sun would affect it.

Step 1: Provide location of where building would be situated onto ladybug analysis. In this case, Brasilia, Brazil.

Step 2: Start seeing the type of analysis you would like to see. In this project radiation analysis, SunPath Analysis, and several psychrometric analysis will be taken.

Step 3:

Select Meshes you would like to run and simulation for every single analysis will start

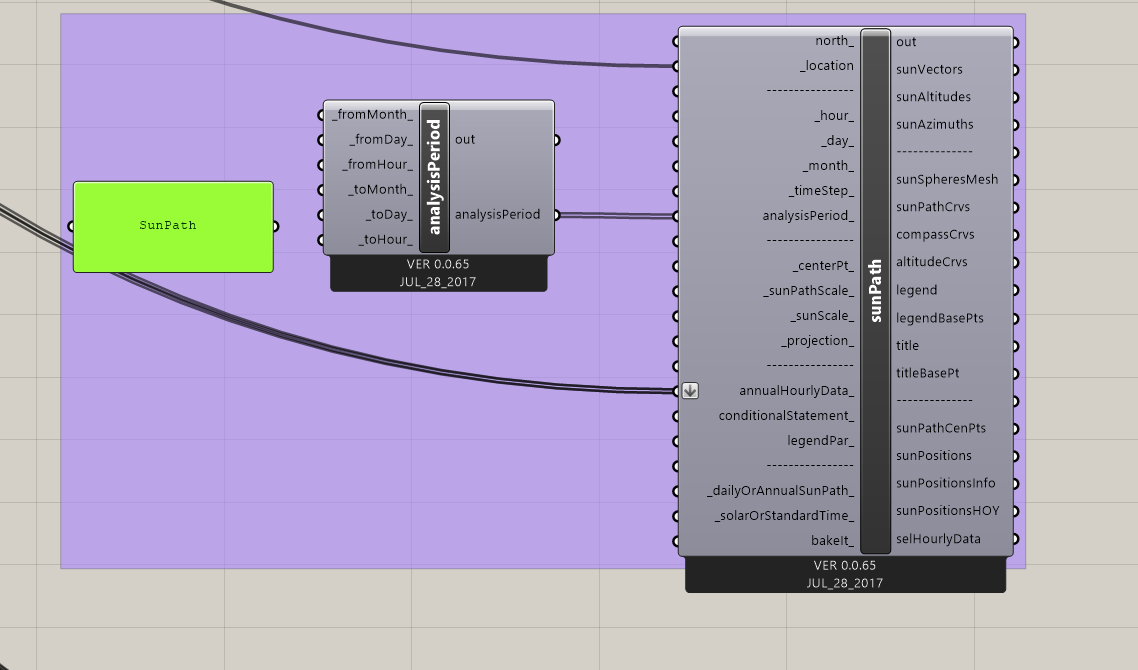

Step 4:Sun Path Analysis

Step 5: Psychrometric Charts
